제품 세부 정보

집 > 상품 >

리튬 폴리머 배터리

High Capacity 3.7V 850mAh 500times Cycle Life Lithium Polymer Rechargeable Battery 851768 1S1P

모든 범주

가지고 다닐 수 있는 동력화차

저희와 연락

Mrs. Linda

linda@szgpebattery.com

+86 15817210994

지금 연락하세요

High Capacity 3.7V 850mAh 500times Cycle Life Lithium Polymer Rechargeable Battery 851768 1S1P

모델 번호:	LP851768
MOQ:	2000 피스
포장에 대한 세부 사항:	대량 포장
지불 조건:	티/티

자세한 정보

제품 설명

자세한 정보

원래 장소:

KC,UN38.3, MSDS, IEC62133, RoHS

배터리 유형:

리?? 폴리머 배터리 팩

380mAH

사이클 수명:

500 번

2000개

리드타임:

15-20일

애플리케이션:

가전 제품류, 가전제품

8.5*17*68mm

공급 능력:

매일 50'000Pieces

제품 설명

High Capacity 851768 3.7V 850mAh 1S1P Lithium Ion Polymer Battery

This customized rechargeable lithium polymer battery offers high capacity performance with 500+ charge cycles, designed for reliable power applications.

Product Specifications

Mechanical Characteristics

Cell	851768	PCM	Yes
NTC	No	Weight	Approx. 17g
Configuration	1S1P

Electrical Specification

Capacity	850mAh	Nominal Voltage	3.7V
Energy	1.776Wh	Internal Impedance	< 180mΩ
Max. Charge Voltage	4.2V	Discharge Cut Off	2.75V
Max. Charge Current	850mA	Max. Discharge Current	850mA
Standard Charge Current	170mA	Standard Discharge Current	170mA
Charge Temp. Range	10°C to 45°C	Discharge Temp. Range	-20°C to 60°C

Storage Temperature Range

1 year	-20℃ to +30℃
3 months	-20℃ to +45℃
1 month	-20℃ to +60℃

Cycle Life Performance

100 cycles	≥92% capacity retention
300 cycles	≥88% capacity retention
500 cycles	≥80% capacity retention

Cell Protection Features

Overcharge Detection	4.28 ±25mV (1-1.6sec delay, release 4.2V ±50mV)
Overdischarge Detection	2.5V ±50mV (115-175msec delay, release 3.0V ±50mV)
Overcurrent Detection	2.5A to 4.0A (9-15msec delay)
Short Protection	Yes

Safety Precautions

Keep batteries away from children to prevent swallowing hazards
Read all guides carefully before use, charging, or installation
Use batteries only during their operational lifespan
Remove batteries when their life cycle is complete
Store unused batteries in cool, low-humidity environments
Clean battery connections with dry cloth before use if dirty
Avoid electrostatic environments during use and charging
Operate within specified temperature ranges: Charge 0ºC~45ºC, Discharge -20ºC~55ºC

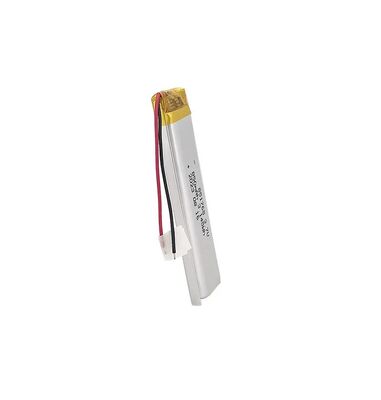

Product Images

Usage Guidelines

Important Safety Notes:

Avoid high temperature environments to prevent overheating and performance degradation
Do not use in areas with high static electricity to protect safety devices
If electrolyte contacts eyes, rinse immediately with clean water and seek medical attention
Discontinue use if battery emits odor, generates heat, discolors, or appears abnormal
Tape terminals to insulate discharged batteries to prevent fire hazards
Store at room temperature, charged to 40-60% capacity
Charge every 3 months during storage to maintain battery health

Additional Battery Models

Shenzhen Gold Power Energy offers over 1000 lithium polymer battery models with capacities ranging from 20mAh to 5000mAh to meet diverse application requirements.

Manufacturer Information

Shenzhen Gold Power Energy Co., Ltd. has been a leading battery supplier since 2001, specializing in Li polymer batteries, Lithium ion batteries, LiFePO4 batteries, and customized battery packs.

3.7 Ｖ 80 mah 리포

2000mAh Li 폴리머 건전지 팩

501020 Li 폴리 배터리
