모델 번호: | ICR18650-2S1P |
MOQ: | 500pieces |
포장에 대한 세부 사항: | 벌크 패킹 |
지불 조건: | 전신환 |

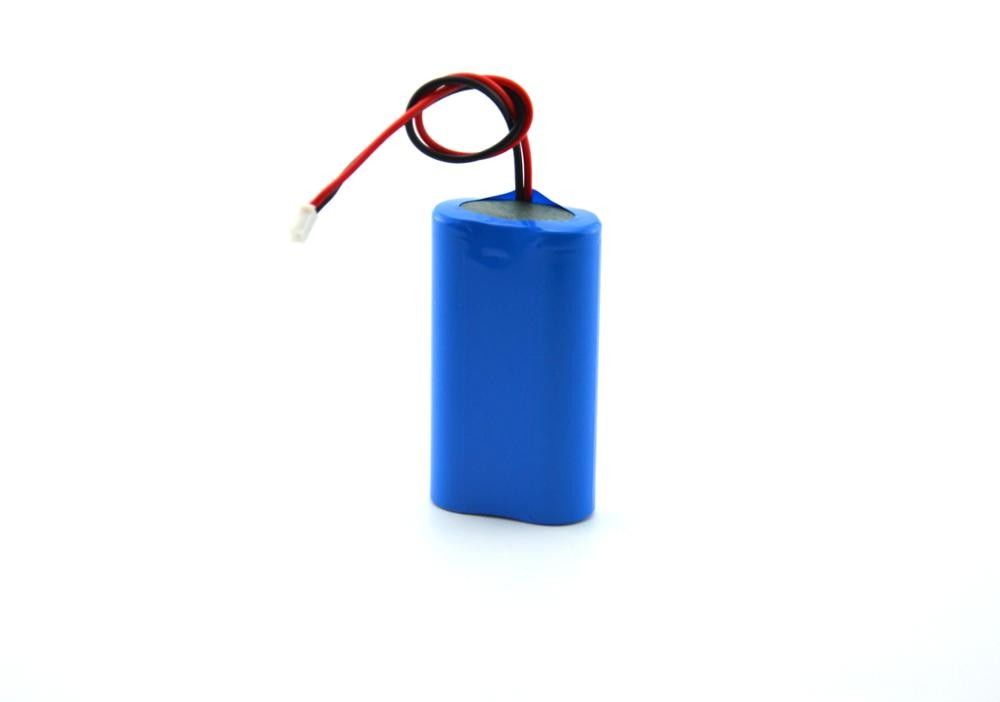

Rechargeable Lithium Batteries 18650 2S 7.4V 2200mAh li ion battery cell
Item | Description |
Assembly | 2S1P |
Rated Voltage | 7.4V |
Rated Capacity | 2200mAh(After fully charged, discharged @ 0.2C to 2.4V capacity) |
Internal Resistance | less than 90mW |
Discharge Cut-Off Volatge | 4.8V |
Max Charging Current | 0.5C |
Max Dis-charging Current | 1.5C |
Max Constant Dis-charging Current | less than 3A |
Over Current Protection | 4.8V |
Max Charging Volt | 8.6V |
Charging Method | CC/CV (constant cuurent/ constant volt) |
Size | 19*38*67mm |
Charging Temperature | 0~45℃ |
Discharging Temperature | -20~60℃ |
Relative Humidity | 65±20% |
Transport Volt | 7.4~8.0V |
Storage Time & Temperature |
-20~60℃ if 1 month -20~45℃ if 3 months -20~25℃ if 12 months |
Storage Volt Required |
7.4V |

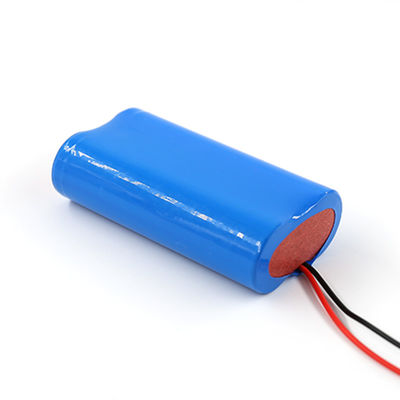

Detailed images: Rechargeable Lithium batteries 7.4V 2600mAh
Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
Portable office devices: Notebook, PDA, portable electrograph, portable printer.
Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
Illuminate devices: miner lamp, searchlight. Others: toys, models.
Customized 3.7V, 7.4V, 11.1V, 14.8V lithium ion battery packs
Other lithium ion cylindrical battery cell on sale:
Lithium ion battery cells list | ||||||
Model No. | Nominal Voltage | Typical Capacity | Size | Charge Rate | Discharging Rate | Weight(g) |
ICR14500 | 3.7V | 600mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 19.5 |
ICR14500 | 3.7V | 750mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20 |
ICR14500 | 3.7V | 800mah | 13.9×48.5±0.3 | 0.2-1C | 0.2-2C | 20.5 |
ICR18500 | 3.7V | 1300mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
ICR18500J | 3.7V | 1400mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 31 |
ICR18500 | 3.7V | 1600mah | 18.0×49.7±0.2 | 0.2-1C | 0.2-2C | 32 |
ICR18650 | 3.7V | 2200mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 40 |
ICR18650 | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 45 |
ICR18650 | 3.7V | 3000mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 48 |
ICR18650 | 3.7V | 3400mah | 18.0×65.2±0.2 | 0.2-1C | 0.2-2C | 50 |
ICR26650 | 3.7V | 4500mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 80 |
ICR26650 | 3.7V | 5000mah | 26.3×65.0±0.5 | 0.2-1C | 0.2-2C | 85 |
ICR18650P | 3.7V | 2600mah | 18.0×65.2±0.2 | 0.2-1C | 5C | 45 |
Why Choose us:
Technology
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
