리튬 전지셀
>
3.7v 3500 mah 저온 리튬 이온 전지 셀 18650

3.7v 3500 mah 저온 리튬 이온 전지 셀 18650

모델 번호: ICR18650
MOQ: 1000개 부분
포장에 대한 세부 사항: 벌크 패킹
지불 조건: 전신환
자세한 정보
원래 장소:
중국
인증:
UN38.3, MSDS, IEC62133, RoHS
전지법:
리튬 이온 전지 셀
모델:
ICR18650
공칭 전압:
3.7V
공칭 정전 용량:
3500mAh
싸이클 수명:
500times
방전 비율:
1C
양극 물자:
코발트산 리튬
생산 소요 시간:
15 일
작동 온도:
-40-60C
위탁 온도:
0 ~ 60 ℃
공급 능력:
매일 100'000Pieces
강조하다:

3500 mah 저온 리튬 이온 Battery

,

3.7v 저온 리튬 이온 바테리

,

리튬 이온 베터리 셀 18650

제품 설명

Low Temperature -40℃ Battery Lithium Ion Rechargeable Battery Cell 18650 3.7v 3500mah



Items

Specifications

Remarks

1

Rated charge

Limiting 1.7A and constant 4.2V charge for 2.5h or 100mA at 23 oC.

2

Rated discharge

Constant 0.68A discharge until 2.5V at 23 oC.

3

Rated capacity

3.35Ah (Minimum) 3.45Ah (Typical)

Rated discharge capacity after rated charge.

4

Nominal voltage

3.6V

Mean voltage during rated discharge after rated charge.

5

Shipping voltage

≥ 3.45V

Nominal approximate state of charge ≤ 30%.

6

Internal resistance

≤ 35mΩ

Fresh cell measured by AC impedance at 1kHz

7

End of charge voltage

4.20  0.05V



8

End of discharge voltage

2.5V

Discharge voltage for determination of rated capacity.

9

Charging time

150 min

Rated charge.

10

Maximum charging current

1.7 A

See Section 4.14

Maximum discharging current

10 A

Cycle life is reduced at high rates.

11

Operating temperature

Charging

0 ~ 60 oC

See Section 4.14

Discharging

-40 ~ 60 oC



12

Storage temperature for shipping cell

< 35 oC

Recommended temperature less than 23 oC for long term storage.

13

Shelf life

1 year

See Section 5.4.

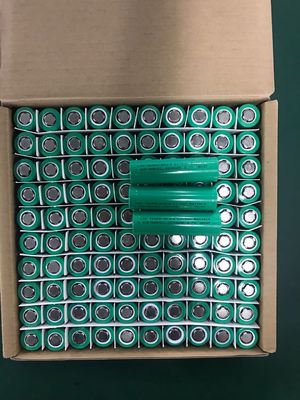

Detailed images for Low temperature lithium battery cells



3.7v 3500 mah 저온 리튬 이온 전지 셀 18650 03.7v 3500 mah 저온 리튬 이온 전지 셀 18650 1

Lithium ion battery Low Temperature -40℃ discharge performance



Items

Condition

Capacity

Test Method

1

Discharge Capacity at 23 oC

0.68 A

≥3.35Ah

Discharge capacity to 2.5V after rated charge

1.7 A

≥3.30Ah

Discharge capacity to 2.5V after rated charge

3.4 A

≥3.20Ah

Discharge capacity to 2.5V after rated charge

6A

≥3.10Ah

Discharge capacity to 2.5V after rated charge

10 A

≥3.00Ah

Discharge capacity to 2.5V after rated charge

2

Temperature Discharge Capacity at 0.68A

45 ℃

≥3.35Ah

Discharge capacity to 2.5V after rated charge at 23 o

0 ℃

≥3.10Ah

Discharge capacity to 2.5V after rated charge at 23 oC

-20

≥2.70Ah

Discharge capacity to 2.5V after rated charge at 23 oC.

-30

≥2.00Ah

Discharge capacity to 2.0V after rated charge at 23 oC.

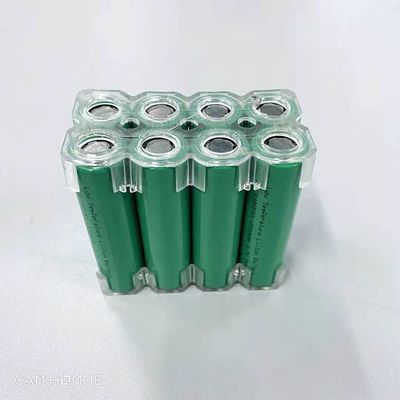

Customized lithium rechargeable battery packs



3.7v 3500 mah 저온 리튬 이온 전지 셀 18650 2

Cautions and Warnings for Using Lithium Battery cells

1. Don’t immerse the battery in water.

2. Don’t use and leave the battery near a heat source such as fire or heater.

3. When charging, use a battery charger specifically for that purpose.

4. Don’t reverse the positive and negative terminals.

5. Don’t connect the battery to an electrical outlet directly.

6. Don’t discard the battery in fire or heater.

7. Don’t connect the positive and negative terminal directly with metal objects.

8. Don’t transport and store the battery together with metal objects such as necklaces, hairpins.

9. Don’t strike, throw or trample the battery.

10. Don’t pierce the battery with a nail or other sharp object.

Other lithium ion cylindrical battery cell on sale:

Lithium ion battery cells list
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharging Rate Weight(g)
ICR14500 3.7V 600mah 13.9×48.5±0.3 0.2-1C 0.2-2C 19.5
ICR14500 3.7V 750mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20
ICR14500 3.7V 800mah 13.9×48.5±0.3 0.2-1C 0.2-2C 20.5
ICR18500 3.7V 1300mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18500J 3.7V 1400mah 18.0×49.7±0.2 0.2-1C 0.2-2C 31
ICR18500 3.7V 1600mah 18.0×49.7±0.2 0.2-1C 0.2-2C 32
ICR18650 3.7V 2200mah 18.0×65.2±0.2 0.2-1C 0.2-2C 40
ICR18650 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 0.2-2C 45
ICR18650 3.7V 3000mah 18.0×65.2±0.2 0.2-1C 0.2-2C 48
ICR18650 3.7V 3400mah 18.0×65.2±0.2 0.2-1C 0.2-2C 50
ICR26650 3.7V 4500mah 26.3×65.0±0.5 0.2-1C 0.2-2C 80
ICR26650 3.7V 5000mah 26.3×65.0±0.5 0.2-1C 0.2-2C 85
ICR18650P 3.7V 2600mah 18.0×65.2±0.2 0.2-1C 5C 45



Why Choose us:



Technology

  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applie
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.

R&D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

3.7v 3500 mah 저온 리튬 이온 전지 셀 18650 3



Quality Control



3.7v 3500 mah 저온 리튬 이온 전지 셀 18650 4



Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

3.7v 3500 mah 저온 리튬 이온 전지 셀 18650 5



Factory Tour:

Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.

We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,

and customized battery pack since 2001.

3.7v 3500 mah 저온 리튬 이온 전지 셀 18650 6
