KC, UL 18650 Lithium Battery 3.7V 2600mAh li-ion battery pack with JST connector
| Item |
Rating |
Note |
| Capacity |
Typical |
2600mAh |
Discharge:0.2CmA (520mA)
cut off Voltage:3V for cell
|
| Minimum |
2600mAh |
| Nominal Voltage |
Average 7.4V |
Discharge:0.2CmA (520mA)
cut off Voltage:3V for cell
|
| AC Impedance Resistance |
≤180mΩ |
|
| Discharge Cut-off Voltage |
3.00V |
|
| Charge Current |
520mA |
Standard Charge |
| Charge Voltage |
4.2V |
|
| Max. Charge Voltage |
4.23V |
|
| Charge Time |
Approx 6h |
Charge: 0.2CmA(520mA ) |
| Max. Charge Current |
2600mA |
1.0CmA |
| Max. Discharge Current |
2600mA |
|
| Weight |
Approx 50.0g |
|
|
Operating
Temperature
|
Charge |
0~+45°C |
|
| Discharge |
-20~+60°C |
|
|
Storage
Temperature
|
less than 1 month |
-5~+35°C |
Recommended storage
temperature: 20°C,at the
shipment state
|
| less than 3 months |
-5~+35°C |

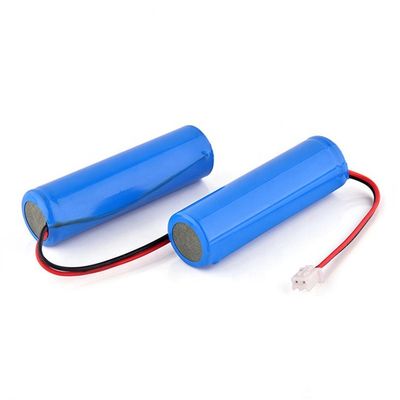

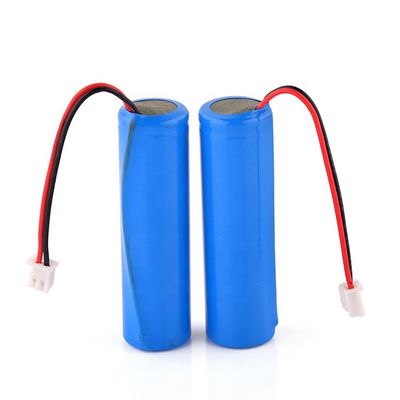

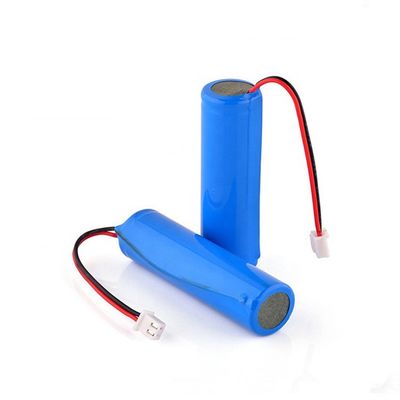

Detailed images for lithium battery cells ICR18650 3.7V 2600mAh li ion battery
3.7V lithium battery pack main applications:
cash-machine,POS Terminal,monitor,barcode scanner,taxi-machine, portable voting device, lighting, fire alarm sensors,
mineequipment, speaker, GPS tracekr, car video-registry, stand-alone telemechanic syster, GSM-modem ect.
Customized lithium rechargeable battery packs
Cautions and Warnings for Using Lithium Battery
1. Don’t immerse the battery in water.
2. Don’t use and leave the battery near a heat source such as fire or heater.
3. When charging, use a battery charger specifically for that purpose.
4. Don’t reverse the positive and negative terminals.
5. Don’t connect the battery to an electrical outlet directly.
6. Don’t discard the battery in fire or heater.
7. Don’t connect the positive and negative terminal directly with metal objects.
8. Don’t transport and store the battery together with metal objects such as necklaces, hairpins.
9. Don’t strike, throw or trample the battery.
10. Don’t pierce the battery with a nail or other sharp object.
Other lithium ion cylindrical battery cell on sale:
| Lithium ion battery cells list |
| Model No. |
Nominal Voltage |
Typical Capacity |
Size |
Charge Rate |
Discharging Rate |
Weight(g) |
| ICR14500 |
3.7V |
600mah |
13.9×48.5±0.3 |
0.2-1C |
0.2-2C |
19.5 |
| ICR14500 |
3.7V |
750mah |
13.9×48.5±0.3 |
0.2-1C |
0.2-2C |
20 |
| ICR14500 |
3.7V |
800mah |
13.9×48.5±0.3 |
0.2-1C |
0.2-2C |
20.5 |
| ICR18500 |
3.7V |
1300mah |
18.0×49.7±0.2 |
0.2-1C |
0.2-2C |
32 |
| ICR18500J |
3.7V |
1400mah |
18.0×49.7±0.2 |
0.2-1C |
0.2-2C |
31 |
| ICR18500 |
3.7V |
1600mah |
18.0×49.7±0.2 |
0.2-1C |
0.2-2C |
32 |
| ICR18650 |
3.7V |
2200mah |
18.0×65.2±0.2 |
0.2-1C |
0.2-2C |
40 |
| ICR18650 |
3.7V |
2600mah |
18.0×65.2±0.2 |
0.2-1C |
0.2-2C |
45 |
| ICR18650 |
3.7V |
3000mah |
18.0×65.2±0.2 |
0.2-1C |
0.2-2C |
48 |
| ICR18650 |
3.7V |
3400mah |
18.0×65.2±0.2 |
0.2-1C |
0.2-2C |
50 |
| ICR26650 |
3.7V |
4500mah |
26.3×65.0±0.5 |
0.2-1C |
0.2-2C |
80 |
| ICR26650 |
3.7V |
5000mah |
26.3×65.0±0.5 |
0.2-1C |
0.2-2C |
85 |
| ICR18650P |
3.7V |
2600mah |
18.0×65.2±0.2 |
0.2-1C |
5C |
45 |
Why Choose us:
Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design technology with the newest electrolyte and separator technology applie
- Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.
R&D
Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.
Quality Control
Certificates-CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.
Factory Tour:
Shenzhen Gold Power Eenergy Co.,Ltd is one of the leading battery suppliers in China.
We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery,
and customized battery pack since 2001.
